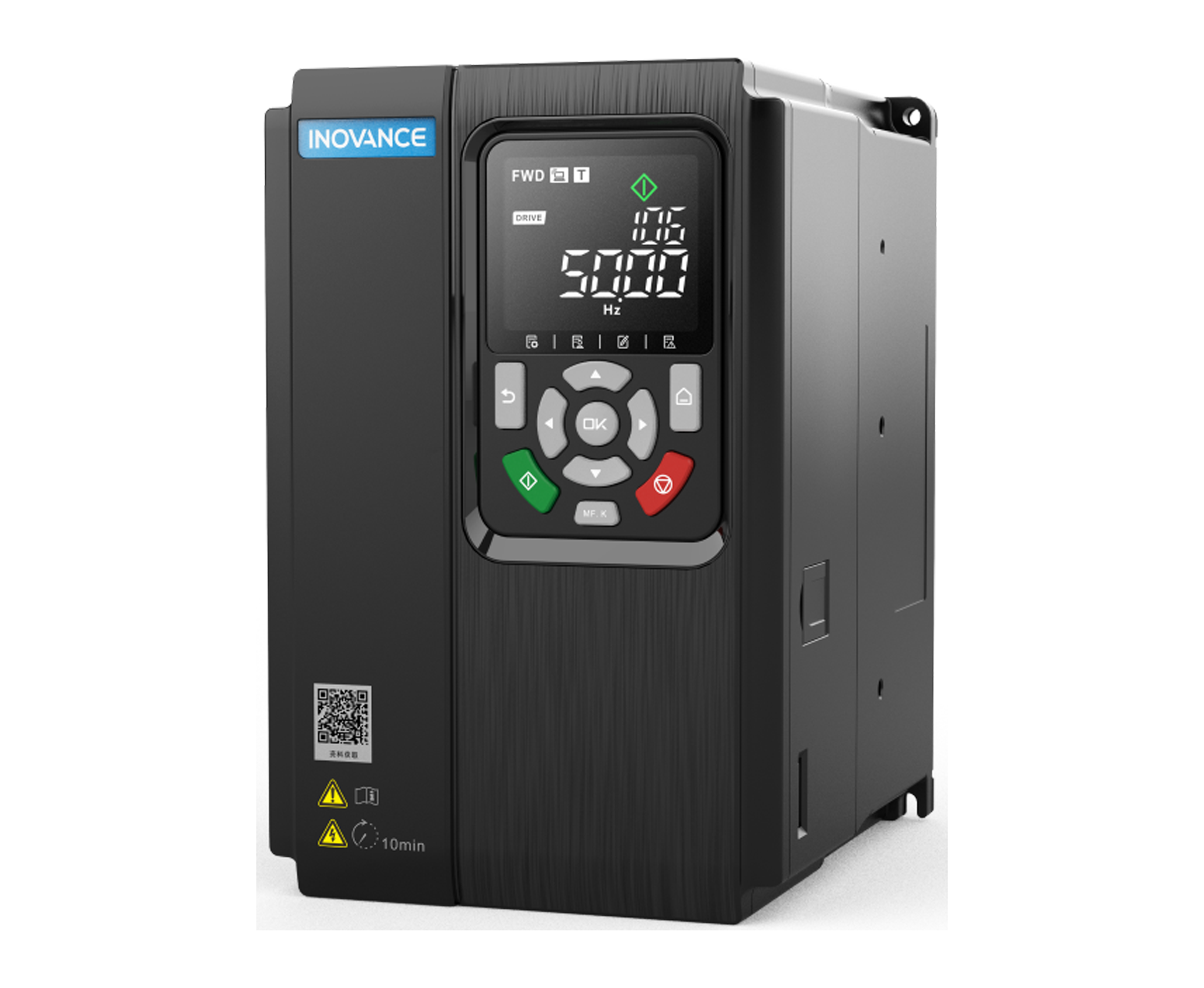

MD520 - PM Synchronous Motor as well as Induction Motor

The Jaaz Electro Drive System MD520 sounds like a versatile and powerful AC drive system suitable for various applications. Its ability to support both induction motors and PM synchronous motors offers flexibility in motor selection based on specific needs or preferences.

The inclusion of open-loop V/F control for induction motors and SVC or closed-loop FVC control likely allows for precise speed and torque control, catering to the different operational requirements. This level of control is essential, especially in applications where consistent performance and efficiency are paramount.

The Jaaz Electro Drive System MD520 sounds like a versatile and powerful AC drive system suitable for various applications. Its ability to support both can Run Induction Motor as well as PM Synchronous Motor offers flexibility in motor selection based on specific Needs or preferences.

The fact that it's available in Coimbatore, as well as across India, ensures accessibility to potential customers in those regions, facilitating easier procurement and support.

Overall, the Jaaz Electro Drive System MD520 appears to be a robust and adaptable solution for motor control needs, offering reliability and performance across various applications and operating conditions.

NEW: built-in colour LED keypad:

  • The clearest possible information display
  • Displays multiple pieces of information simultaneously (e.g. drive status and operating information)
  • User friendly with additional keys
Features & Functions:
Unified AC asynchronous and PM synchronous motor control
Wide operating voltage and product range:
  • 3 ph 380-480 Vac: 0.4 to 500 kW
  • 3 ph 200-240 Vac: 0.4 to 75 kW
  • 1 ph 200-240 Vac: 0.4 to 2.2 kW
Enhanced reliability:
conformal coated PCBs compliant to 3S2 and 3C3 environments
Starting torque
   • 150% at 0.25 Hz for SVC
   • 180% at 0 Hz for FVC
Communication options:
   • Modbus-RTU    • Modbus-TCP    • PROFIBUS-DP    • CANopen    • CANlink    • PROFINET    • EtherCAT    • Ethernet/IP
Application dedicated functions:
   • Master-slave function (torque, speed)    • Textile wobble control
STO SIL 3 PL e
Dual rated: heavy duty (overload: 150%/ 1 min) and normal duty (overload: 110%/ 1 min)
Built-in DC reactor (400 V: 18.5 kW and above; 200 V: 11 kW and above)
Complies with efficiency level IE2 as defined in IEC 61800-9-2
Through-hole mounting options (0.4 to 160 kW)
Bipolar analog input is standard (-10 to +10 V).
PTC input is standard.
Simplified parameters for easy start up.
4 independent S-ramps.
Flexible, programmable I/Os.
User programmable logic.
Variable DC-injection braking
Comprehensive trip diagnostics.
Output frequency: 599 Hz.
Brake control logic.
4 motor parameter sets.
Automatic torque boost.
PC-based software: simplified start up and backup
